Sherrie Lingerfelt's Focal Bead Pendant, Classic Wire Jewelry. Wire Wrapping, Wrapping, Wire Wrapping Jewelry. While working out the instructions for my Interchangeable Pendant Frame, this idea jumped into my mind.

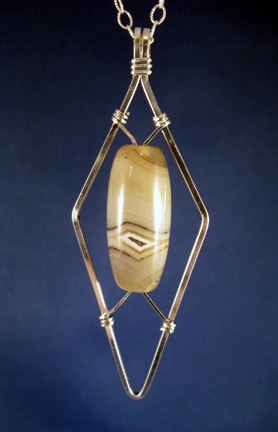

Focal Bead Pendant
by Sherrie Lingerfelt
  • Category: Classic
  • Technique(s): Wrapping
  • Skill Level: Intermediate
While working out the instructions for my Interchangeable Pendant Frame, this idea jumped into my mind. The pattern below is made using a 1-inch long bead, but it can be easily altered. Experiment and record your results for different sizes. Maybe even try a multiple bead combination!

Technique: Precise Bending & Forming Heavy Square Wire

Materials

18 Gauge Half Round Dead Soft 1/10 Sterling Silver Filled Wire
H10-18HRD
  • Lesson Quantity: 4.00 pieces
  • Purchase Quantity: 1.00 1FT
  • Price: $0.79
  • Gold Club Price: $0.59
Add to Bag
22 Gauge Square Half Hard 1/10 Sterling Silver Filled Wire
H10-22SQH
  • Lesson Quantity: 1.00 inches
  • Purchase Quantity: 1.00 1FT
  • Price: $0.78
  • Gold Club Price: $0.58
Add to Bag
16 Gauge Square Dead Soft .925 Sterling Silver Wire
H8-16SQD
  • Lesson Quantity: 4.00 inches
  • Purchase Quantity: 1.00 1FT
  • Price: $9.15
  • Gold Club Price: $6.86
Add to Bag
Abstract Oval Amethyst/White/Aventurina/Yellow Gold, Size 25mm
A3-126
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $7.97
  • Gold Club Price: $5.98
Add to Bag
Add All Items to Cart

Tools

4-1/2 Inch Chain Nosed Pliers with Ergonomic Handles
G2-68
  • G2-68
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $7.97
  • Gold Club Price: $5.98
Add to Bag
6.5 Inch Long Flat Nose Pliers - Pack of 1
G2-74
  • G2-74
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $9.87
  • Gold Club Price: $7.40
Add to Bag
4.5 Inch Round Nose Pliers
G2-12
  • G2-12
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $3.97
  • Gold Club Price: $2.98
Add to Bag
C.H.P Milano Angled Flush Cutter, 5-1/4 Inches
PLR-489.00
  • PLR-489.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $19.97
  • Gold Club Price: $14.98
Add to Bag
12 Inch Stainless Steel Ruler
G7-30
  • G7-30
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $2.97
  • Gold Club Price: $2.23
Add to Bag
Add All Items to Cart
Instructions
Step 1

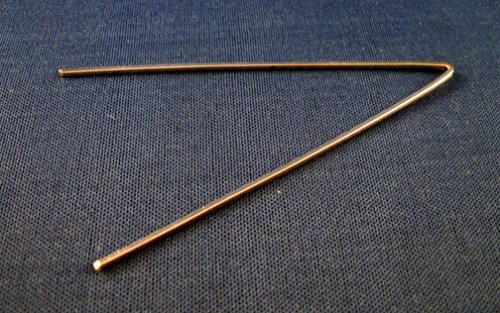

Using the 16g wire, straighten, measure and then cut one piece 7-3/8 inches long. Mark the center of wire at 3-11/16 inches and then measure and mark 1-5/8 inch on each side of the center. From the 1-5/8 inch marks, measure toward each end and mark at 1-3/16 inches. Use chain-nose pliers to hold the wire at the center and bend the wire up, forming a 40° angle
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 2

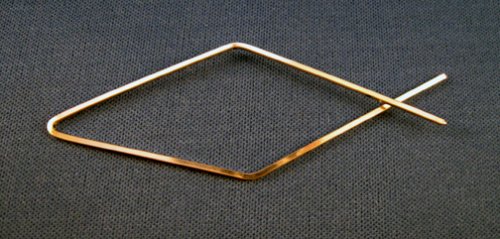

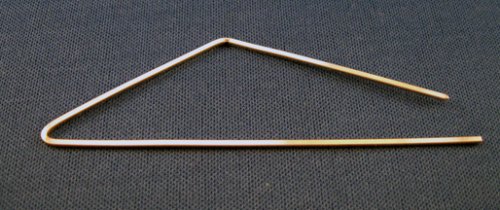

Use chain-nose pliers to hold frame at a 1-5/8 inch mark and bend inward, forming a 130° angle. Repeat on other leg of frame.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 3
Use chain-nose pliers to hold wire at the 1-3/16 inch mark and bend the wire at 28° to from bail wires. Repeat on other leg.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 4

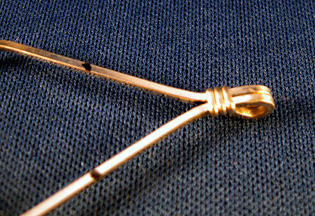

Tape the ends of the bail wires together. Use 18 gauge ½ round wire to wrap up from the base of bail, 3 times to show. On the back of the frame, use small bail pliers or round-nose to roll the wire ends toward the back, forming the bail. From bottom of last wrap, measure down each leg 3/8-inch and mark. Place the frame to the side.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 5

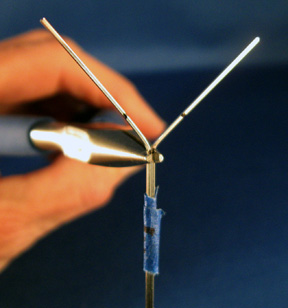

From the end of each of the two 3-7/8 inch long, 22g square wires, measure down ¾-inch and mark. From this mark measure another 5/16-inch and mark again. Just below the 5/16-inch marks, tape these two wires together.

On the 5/16-inch mark, use chain-nose pliers to hold the wire pair and use fingers to bend the wires away from each other until they form a 130° angle.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 6

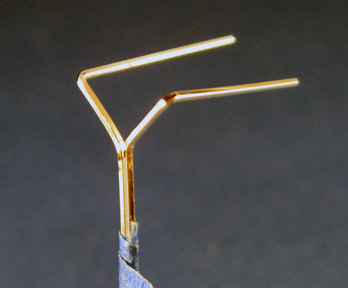

At the 3/4 inch mark, use chain-nose pliers to hold the wire and fingers to bend it back 90°. Repeat on the other leg.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 7

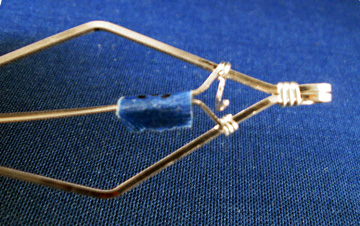

Hook one of these bent wires over the frame at the 3/8 inch mark and use it to wrap from the mark up, 3 times to show and trim. Repeat with the other bent wire.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
Step 8
From the bottom of the bead, measure down each bent wire 1-1/8 inch and mark. Attach them each to the frame, wrapping down, 3 times to show.
Sherrie Lingerfelt's Focal Bead Pendant - , Classic Wire Jewelry, Wire Wrapping, Wrapping, Wire Wrapping Jewelry,
