Necklace Component
by Judy Larson
  • Category: Weaving
  • Technique(s): Wrapping, Weaving, Design, Twisting
  • Skill Level: Intermediate
Today I have an awesome tutorial on making a Necklace Component. This component can be used for so many projects. I know that you will love it and find it very useful.

Note: Step by step directions to make the weaves used in this tutorial are not included but should be self-explanatory through the photos if you have wire weaving experience. Finished component measure 1-5/8″ across, 1-1/8″ up and down and 3/8″ thick.

Materials

28 Gauge Round Dead Soft .925 Sterling Silver Wire
H8-28D
  • Lesson Quantity: 10.00 feet
  • Purchase Quantity: 1.00 10FT
  • Price: $4.37
  • Gold Club Price: $3.28
Add to Bag
22 Gauge Round Dead Soft .925 Sterling Silver Wire
H8-22D
  • Lesson Quantity: 5.00 feet
  • Purchase Quantity: 1.00 5FT
  • Price: $8.06
  • Gold Club Price: $6.05
Add to Bag
Add All Items to Cart

Tools

8 Piece Mini Brass Mandrel Set
G7-14
  • G7-14
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $18.97
  • Gold Club Price: $14.23
Add to Bag
Round Nose Wire Plier
G2-507
  • G2-507
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $32.95
  • Gold Club Price: $24.71
Add to Bag
C.H.P Milano Italian Flush Cutter, 5 1/2 Inches
PLR-487.00
  • PLR-487.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $14.97
  • Gold Club Price: $11.23
Add to Bag
5 1/2 Inch Nylon Flat Jaw Pliers with Replacement Jaws
G2-1
  • G2-1
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $9.97
  • Gold Club Price: $7.48
Add to Bag
Add All Items to Cart
Instructions
Step 1
Straighten and cut four 15″ pieces of 22 gauge round wire. These wires will be the core wires. Straighten and cut one 10 foot piece of 28 gauge round wire. This will be the weaving wire.
Step 2
Set the 15″ wires side by side. Mark the center. Mark the center of the weaving wire. Hint: You may find it easier to begin weaving by taping one end of all the core wires together and by placing a piece of tape at the center of the weaving wire.
Step 3
Start weaving in the center of the core wires with the center of the weaving wire. Make a zig-zag pattern of 16 rotations of the inverted "V"s. Two rotations going to the right of center are shown in the first photo. The second photo shows the full 8 rotations to the right of center. The third photo shows all 16 rotations: 8 to the right and 8 to the left of center.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling Wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Step 4
With the points of the inverted "V"s facing out, curve the woven section into a circle, completely crossing the woven ends. You may find a 12mm mandrel helpful. You may also find that when you are done you need to flatten the circle using a soft jaw pliers.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Using 12mm Mandrel
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Looped Sterling wire weave
Step 5
Pull the top core wire on each side slightly upward and away from the lower three core wires. Do a one inch length of a 2×2 weave on the lower three wires on both sides.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , 2X2 Sterling Wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Close up of 2X2 Sterling Wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Measuring wire weave
Step 6
Curve each of the 2×2 woven sections into a circle as shown. You may find a 2-3mm mandrel helpful. You may also find that when you are done you need to flatten the circles using a soft jaw pliers.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Forming Sterling wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Close up of wire weave
Step 7
Wrap the inner wire on both sides to a length of 1/2″.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Measuring with ruler
Step 8
Curl each wrapped wire into a circle as shown.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling silver wire wrapped coils
Step 9
Leaving the weaving wire outside the bead on each side, pull the core wire ends through the 6mm bead, pulling the left wire to the right and the right wire to the left tightly, being careful to not pull the coiled section through the bead.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Adding Silver bead to woven piece
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Close up of bead connection
Step 10
Bundle the wire coming out of the bead with the top wire of the lower three core wires. Do a one inch section of a 3×2 weave on both sides of center. The 3 part of the 3×2 weave should be on the outer wire. Before starting the weave, you may decide to use the weaving wire to cover some of the core wire before they fit together nicely for the 3×2 weave.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Measuring wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Measuring wire weave
Step 11
Curve each of the 3×2 weave wires against the side of the bead and around the small wrapped coil made in Step 8.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire woven piece
Step 12
Pull the 3 x 2 weave wires to the back and downward. Back and front view shown.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Back view of wire weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Front view of wire weave
Step 13
Cross the core wires on the back. Leaving the weaving wires on the back, bring the wires to the front between the center and side woven circles.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Crossing sterling wire on back
Step 14
Push the core wire ends from the front through to the back side under the bead, hiding the wires under the woven wires next to the bead. The wires should come out on the back on either side of the crossed over wires. Back and front shown.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Securing sterling wire for weave
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Front view of Sterling wire weave
Step 15
Choose the shortest of the wires on each side to wrap to the front and then to the back in the same manner as Steps 13-14. Trim the wire off, leaving a long enough tail to tuck out of the way so it can not scratch the wearer.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Securing sterling wire
Step 16
Wrap the outer core wire on each side to a length of 1/2″.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Step 17
Make a small loop on each side with the wrapped wire. Tuck the loop slightly under the larger section next to the bead.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Step 18
On each side, bundle the three wires together. Do a one inch length of a 2×2 weave on the wires.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Sterling wire weave
Step 19
Curve each of the 2×2 woven sections into a circle as shown. You may find a 2-3mm mandrel helpful. You may also find that when you are done you need to flatten the circles using a soft jaw pliers.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Shaping sterling wire weave
Step 20
Wrap the inner wire on each side to a length of one inch.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Measuring sterling wire weave
Step 21
Trim the outer two wires on each side to a length of 1/8″.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Trimming sterling wire
Step 22
Use your round nose pliers to make a loop towards the back of the piece with the two wires you just trimmed.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Using round nose pliers to form
Step 23
Trim the core wire on the coil wrapped wire 1/4″ beyond the end of the coil wrap.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Trimming sterling wire
Step 24
Following the contour of the connecting loop made in Step 24, bring the coil wrapped wire around to the front. Use the tips of your round nose pliers to make a very small loop to start a spiral with the coil wrapped wire. Leave the weaving wire on the back side, make a spiral to fit on top of the woven base beneath it.
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Forming sterling wire woven piece
Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Back side of sterling wire weave
Step 25
se the weaving wire to attach the swirl on each side to the base beneath it, hiding the end before trimming it off.


That's it! Now you can incorporate it into your next necklace project.

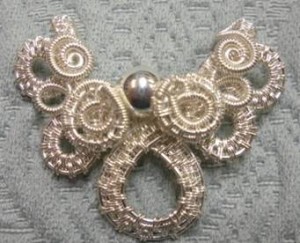

Judy Larson's Necklace Component - , Wire Weaving, Wire Wrapping, Wrapping, Wire Wrapping Jewelry, Weaving, Wire Weaving, Weaving Wire, Design, , Finished sterling wire weave piece
